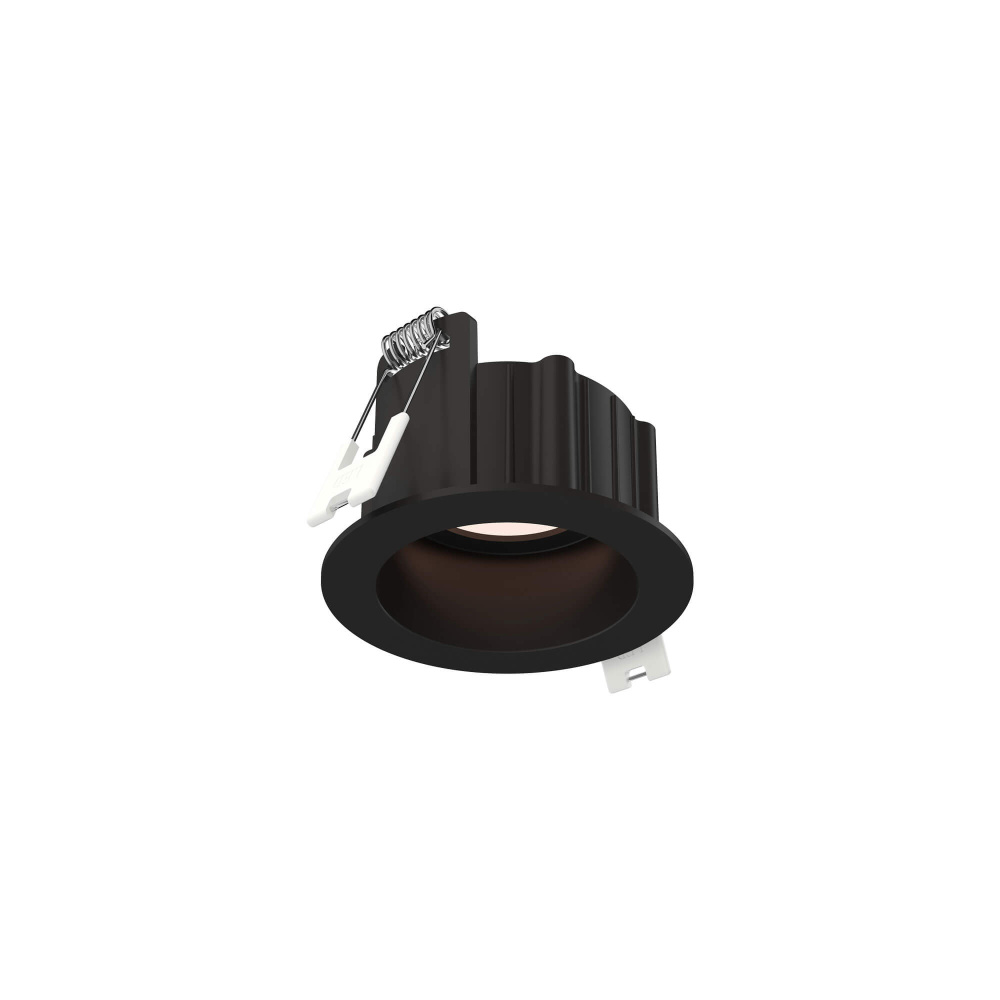

2'' 5CCT 1" deep regressed panel (6XZ2K)

Image may not reflect selected features
No Image
Available
2'' 5CCT 1" deep regressed panel
additional image
BASE PRICE:
$
25
38
/ / 1
($25.38 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
6XZ2K
Dimensions:
Height: 1.88"
Width: 3.13"
Length: 3.13"
Changes Other Selections...
Availability:
  • Manufacturer has 1074 items available.
Description
Details
Downloads
The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Title 24 , Outdoor , Wet Rated , Prop 65
Category:
Recessed
Subcategory:
Regressed
Finish:
White
Family:
Notch
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
2.76
Ship Carton Length:
6.1
Ship Carton Width:
4.72
Ship Weight:
1.5
Warranty:
5 Years Limited
Weight:
1
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
100°
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
500
Dimmer Type:
Triac
Energy Star:
No
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
JA8:
Yes
Lens Material:
Acrylic
Location Rating:
Wet Rated
Max Wattage:
9 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Prop 65:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
15.75
Shipping Master Length:
13
Shipping Master Quantity:
20
Shipping Master Width:
10.25
Title 24:
Yes
Wiring:
Hardwired


Additional Information:
  • Edge lit technology
  • Frosted lens
  • Over 50,000 hours of service life
  • Smooth 360 degree wide spread
  • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
